Wi-Fi-operated smart switch, 1 channel 8 A
The smallest relay switch in the world for smart control. Automate your lights, garage door, irrigation system, or other small electrical appliances in less than 10 minutes and control them from anywhere. Small enough to fit behind any wall switch or socket, Shelly Plus 1 Mini can be retrofitted and is highly compatible with your existing smart ecosystem.
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation system.
- Supports up to 8 A at 240 VAC and 5 A at 30 VDC
- Dry contacts (potential-free) - option for contactor control
- Wi-Fi range extender & Bluetooth gateway
- Extremely fast processor for immediate reaction – ESP32
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates

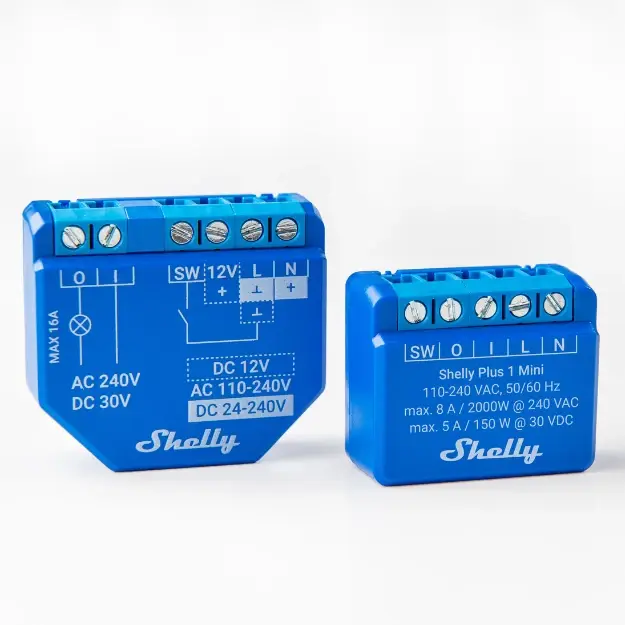

Shelly Plus 1 Mini
PHYSICAL Size (HxWxD): 29x35x16 ±0.5 mm / 1.11x1.35x0.63 ±0.02 in Weight: 19 ±1 g / 0.65 ±0.04 oz Mounting: Wall box Screw terminals max torque: 0.4 Nm / 3.5 lbin Conductor cross section: 0.5 to 1.5 mm² / 20 to 16 AWG Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in Shell material: Plastic Color: Blue ENVIRONMENTAL Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F Humidity 30 % to 70 % RH Max. altitude 2000 m / 6562 ft ELECTRICAL Power supply: 110 - 240 VAC Relay: Dry, NO contact, 1-pole, µ contact External protection: 10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 Power consumption: < 1.2 W Output circuits ratings Max switching voltage AC: 240 V Max switching voltage DC: 30 V Max switching current AC: 8A Max switching current DC: 5A Max switching power AC: 2000 W Max switching power DC: 150 W Power measurement: No Voltage protection / Cutoff: No Current protection / Cutoff: No Max power protection / Cutoff: No RADIO RF band: 2400 - 2495 MHz Max. RF power: <20 dBm Wi-Fi protocol: 802.11 b/g/n Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) Bluetooth Protocol: 4,2 Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) MCU CPU: ESP32-C3 Flash: 4 MB FIRMWARE CAPABILITIES Schedules: 20 Webhooks (URL actions): 20 with 5 URLs per hook MQTT: Yes UDP: Yes Scripting: Yes
