The Smart Implant is a universal sensor and double relay to control potential-free and 24V DC circuits. The universal module makes it possible to include any device into the Z-Wave network. The contact on the inputs can be copied to the outputs. In addition, the outputs can also be controlled separately. The device supports analogue sensors, binary sensors, DS18B20 temperature sensors and a DHT22 humidity sensor.

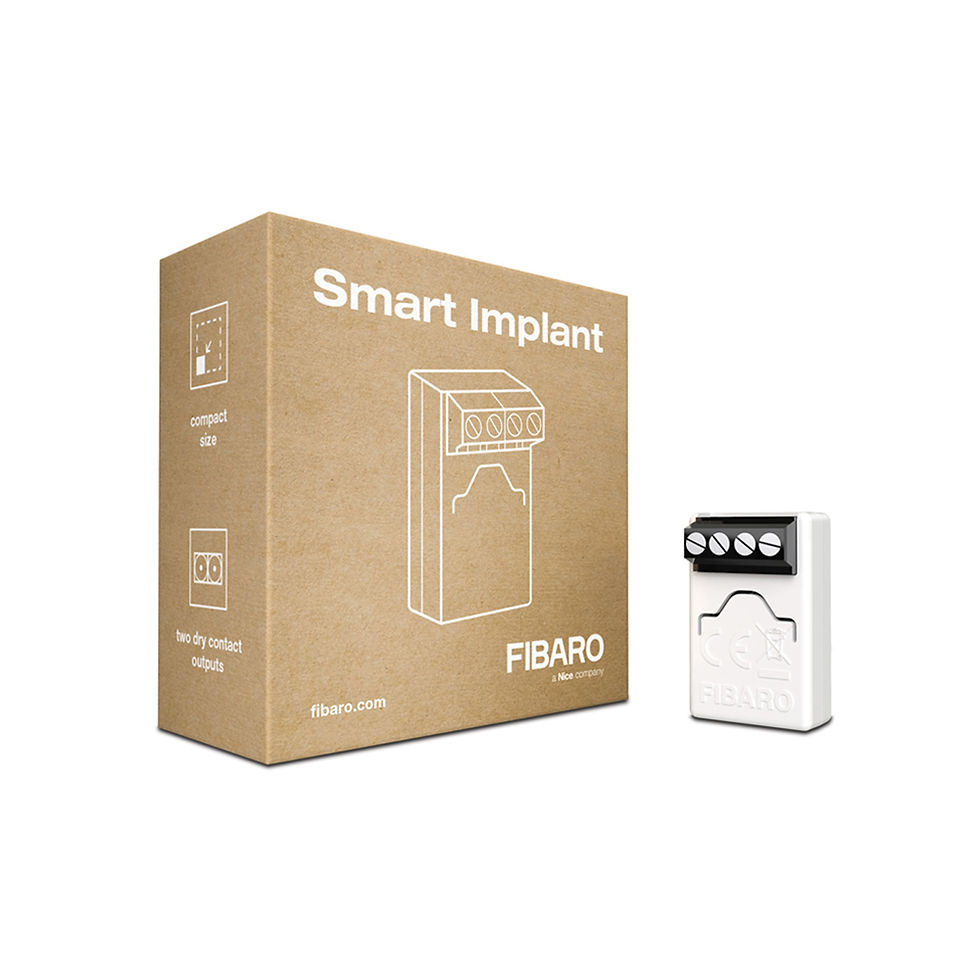

Fibaro Smart Implant
- Works as a Z-Wave repeater
- Universal sensor with two outputs for controlling potential-free contacts
- Built-in temperature sensor
Dimensions Product: 29 x 18 x 13 mm In accordance with guidelines: RED 2014/53/EU RoHS 2011/65/EU Inputs: 2 0-10V or digital inputs 1 serial 1-wire input Installation method: Flush mount Maximum load capacity: 150mA Outputs: 2 potential-free outputs Output voltage: 30V DC / 20V AC ±5% Power source: 9-30V DC ±10% Protocol: Z-Wave Supported digital sensors: 6x DS18B20 or 1x DHT22 Transmit power: +7 dBm
Data according to manufacturer. Errors and changes reserved.
