Wi-Fi-operated smart switch, 1 channel 8A, with Power Metering. The smallest relay switch in the world for smart control and precise power monitoring.
- No hub required!
- Supports up to 8 A at 240 VAC.
- Wi-Fi range extender & Bluetooth gateway.
- Precise and real-time power metering with free cloud data storage.
- ESP32 fast processor.
- Supports scripting, webhooks, MQTT, HTTPS, ..
- GEN3

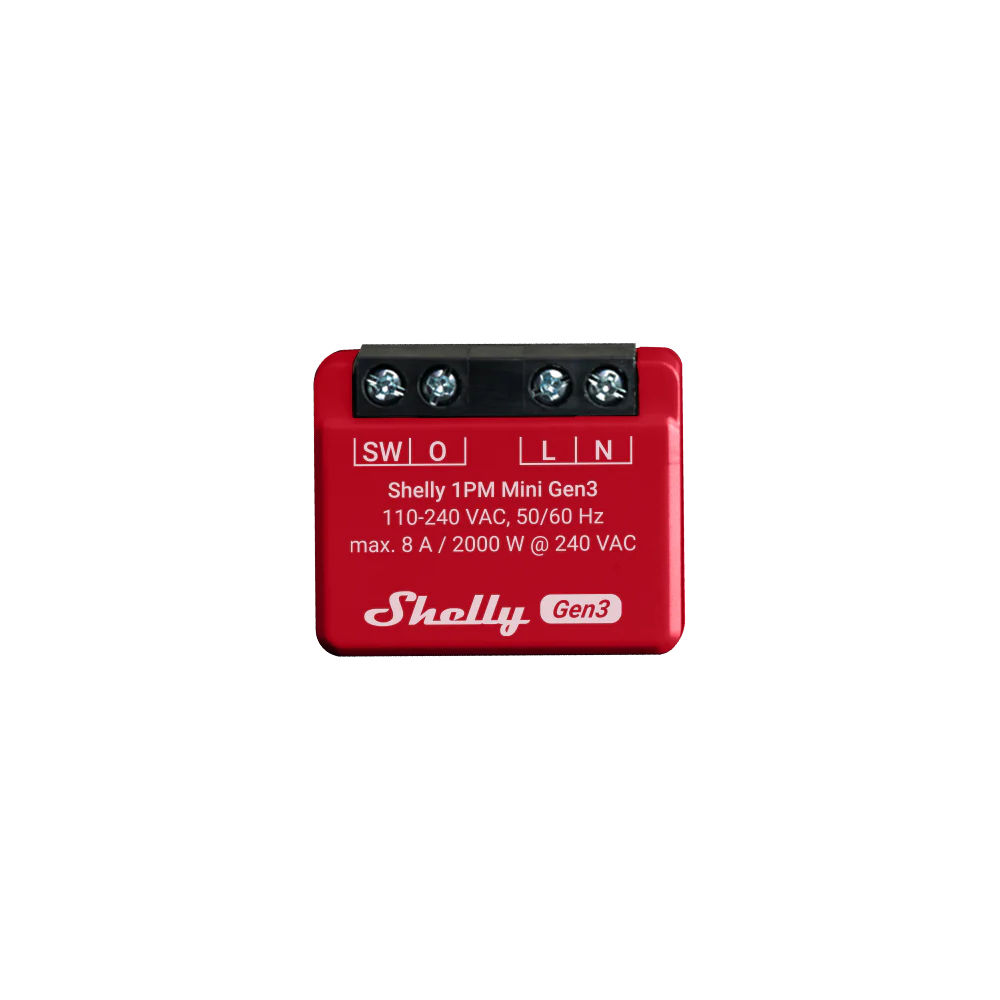

Shelly 1PM Mini GEN3 - Relay Switch with Power Metering 1 x 8A (WiFi, Bluetooth)
Why Shelly 1PM MINI Gen3? Mini Size, Mini Price
Designed with convenience in mind, these mini relays have all the capabilities of the Plus series fit into a compact and space-saving form factor. With their size reduced by 35% of the Shelly Plus devices, the Shelly Mini are perfect for those tight spaces where traditional relays simply won't fit. Despite their small size, the Shelly Mini devices don't compromise on performance or functionality.
Note: This is GEN3 version of product.
- Equipped with a new processor & increased flash memory - ESP Shelly
- Improved durability of terminals
Size does matter!
Shelly Mini devices open up a world of possibilities, allowing you to seamlessly integrate them into even the most tightly packed spaces and switch boxes. Thanks to their reduced size, Shelly Mini relays fit effortlessly into all kinds of electrical boxes, including Danish wall boxes. Furthermore, they can be discreetly installed directly within the appliance you want to control or monitor.
Ideal for:
- Danish switch boxes
- Inside appliances
- Jammed switch boxes
Functionalities
- Wi-Fi Operated - Connect Shelly 1 Mini to your Wi-Fi network. No HUB required!
- Bluetooth - Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
- Power Monitoring - Provides precise monitoring of power consumption and helps you save.
- Smart Schedules - Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
- Smart Scenes - Set custom scenes by combining Shelly 1 Mini with your other Shelly devices.
- Scripting - Shelly 1 Mini fully supports mjS scripting, allowing you to create custom features and functionalities.
- HTTP/HTTPS webhooks - Shelly devices can notify or control another compatible equipment or 3rd party automation system.
Full compatibility
Shelly devices are compatible with Alexa, Google Home, Android and iOS. Together with the voice assistant, you can command Shelly devices using just your voice!
Specifications
- Size (HxWxD): 29x34x16 ±0.5 mm / 1.11x1.34x0.63 ±0.02 in
- Weight: 18 ±1 g / 0.63 ±0.04 oz
- Mounting: Wall box
- Screw terminals max torque: 0.4 Nm / 3.5 lbin
- Conductor cross section: 0.5 to 1.5 mm² / 20 to 16 AWG
- Conductor stripped length: 5 to 6 mm / 0.20 to 0.24 in
- Shell material: Plastic
- Color: Red
- Ambient temperature: -20 °C to 40 °C / -5 °F to 105 °F
- Humidity: 30 % to 70 % RH
- Max. altitude: 2000 m / 6562 ft
- Power supply: 110 - 240 VAC / 24 - 30 VDC
- Relay: NO contact, 1-pole, µ contact
- External protection: 10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3
- Power consumption: <1.2 W
- Max switching voltage AC: 240 V
- Max switching current AC: 8A
- Max switching power AC: 2000 W
- Power measurement: Yes
- Voltage protection / Cutoff: Yes
- Current protection / Cutoff: Yes
- Max power protection / Cutoff: Yes
- Internal-temperature sensor: Yes
- RF band: 2400 - 2495 MHz
- Max. RF power: <20 dBm
- Wi-Fi protocol: 802.11 b/g/n
- Wi-Fi Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
- Bluetooth Protocol: 4,2
- Bluetooth Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
- CPU: ESP32-C3
- Flash: 4 MB
- Schedules: 20
- Webhooks (URL actions): 20 with 5 URLs per hook
- MQTT: Yes
- UPD: Yes
- Scripting: Yes
