A one-channel, dry contact smart switch for controlling lights and appliances. Enjoy faster performance and multiprotocol support (Wi-Fi, Zigbee, Matter, Bluetooth).
Shelly 1 Gen4 is new generation of smart switch for your automation solution.
- Each Gen4 device offers multi-protocol connectivity, featuring Wi-Fi, Bluetooth, Zigbee, and Matter
- Low voltage support and Dry contacts
- Over-load and over-temperature protection
- Improved API

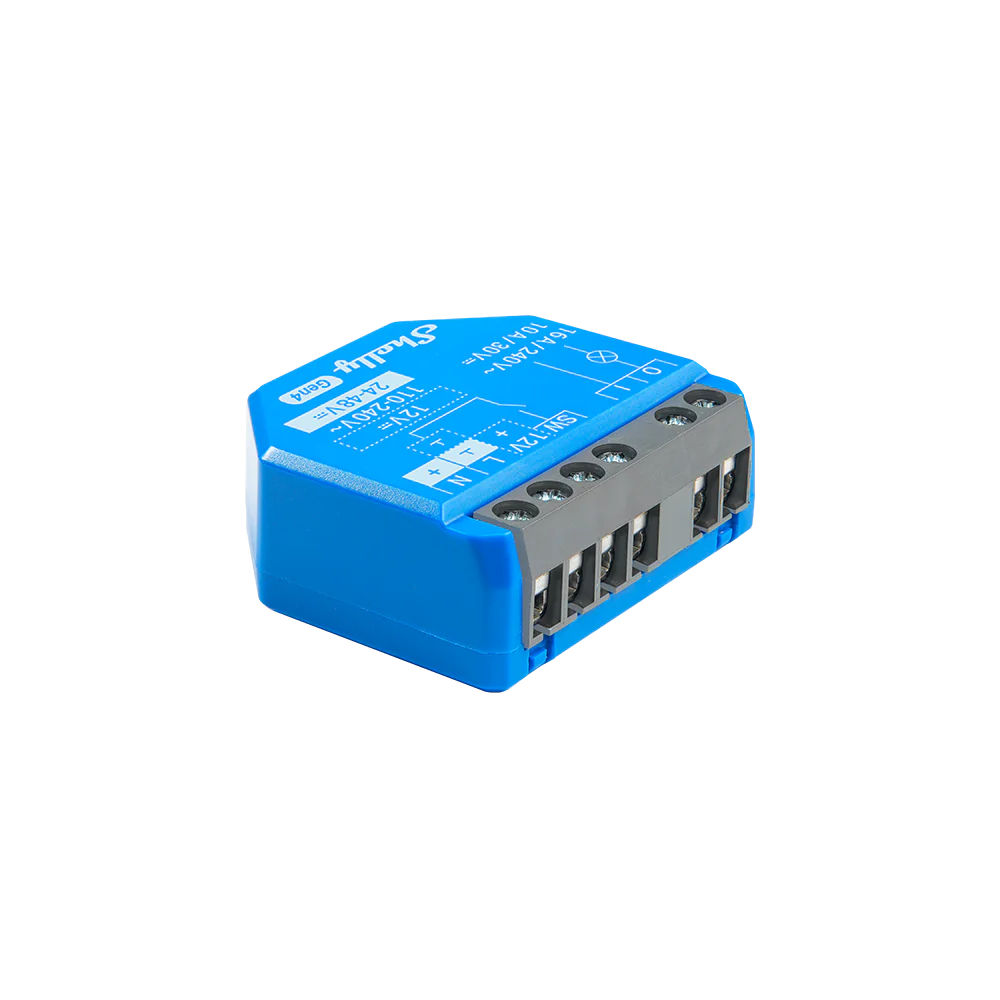

Shelly 1 Gen4 - Relay Switch 1x16A (WiFi, Bluetooth, Zigbee, Matter)
- Shelly 1 Gen4 is a smart switch with potential-free contacts.
- Remotely control a wide range of home appliances and office equipment from anywhere.
- Modernize your standard electrical boxes, sockets and switches or other places with limited space.
- Each Gen4 device offers multi-protocol connectivity including Wi-Fi, Bluetooth, Zigbee and Matter.
- Dry contacts (potentially independent) - contactor control option
- Improved terminal resistance
- High security
- Wi-Fi Range Extender & Bluetooth Gateway
- Support for scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
Universal automation for every project
Our bestseller - now even more powerful, offers multi-protocol connectivity including Wi-Fi, Bluetooth, Zigbee and Matter. Ideal for lighting automation, garage door control and upgrading old appliances. Shelly 1 Gen4 is a great choice for a more efficient and connected home and office.
Features
- Multi-protocol connectivity (Wi-Fi, Bluetooth, Zigbee, Matter) - Choose your connection and set up your Shelly device according to your preferred smart home system.
- Bluetooth - Quickly and easily add devices via Bluetooth using the Shelly Cloud app.
- Dry contacts - Control a wide range of devices and appliances.
- Low and high voltage support - Supports a wide range of output voltages.
- Smart schedules - Set your own schedules based on your daily routine or depending on sunrise/sunset.
- Smart scenes - Combine Shelly 1 Gen4 with other Shelly devices.
- Shelly Smart Control - One app to manage your space, energy consumption and expenses.
- Full compatibility - Shelly devices are compatible with Alexa, Google Home, Android and iOS.
Usage
Smart Irrigation – Set up automatic watering of your garden based on weather forecasts.
Remote Garage Door Control – Automate and control your garage door from anywhere.
Efficient Heating and Cooling – Control the valves and distribution of heat or cooling in your home.
Smart Lighting – Automate your lights according to your daily schedule.
4th Generation Devices
Experience smart home automation at a new level with the new Shelly Gen4. Each Gen4 device offers multi-protocol connectivity including Wi-Fi, Bluetooth, Zigbee and Matter. Choose your connection and set up your Shelly device to work with your preferred smart home network in no time.
Specification Shelly 1 Gen4:
- Size (HxWxD): 37x42x16 mm
- Weight: 26 g
- Maximum terminal tightening torque: 0.4 Nm / 3.5 lbin
- Conductor cross-section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, stranded and with ferrule)
- Wire stripping length: 6 to 7 mm / 0.24 to 0.28 in
- Mounting: Wall bracket / Wall box
- Cover material: Plastic
- Cover color: Blue
- Operating ambient temperature: -20°C to 40°C
- Humidity: 30% to 70% RH
- Max. altitude: 2000 m
- Power supply: 110-240 V~24-48 V⎓12 V⎓
- Power consumption: < 1.2 W
- Max. switching voltage: 240 V~30 V⎓
- Max. switching current: 16 A (240 V~) 10 A (30 V⎓)
- Internal temperature sensor: Yes
- Zigbee protocol: IEEE 802.15 4
- RF band: 2400-2483.5 MHz
- Wi-Fi protocol: 802.11 b/g/n
- RF band:2401-2483 MHz
- Max. RF power: < 20 dBm
- Range: Up to 50 m to 30 m (depending on conditions)
- Protocol: 4.2
- RF band: 2400 - 2483.5 MHz
- Max. RF power: <4 dBm
- Range: Up to 30 m up to 10 m indoors (depending on conditions)
- Scheduling: 20
- Webhooks (Action URLs): 20 with 5 URLs per webhook
- Wi-Fi Repeater
